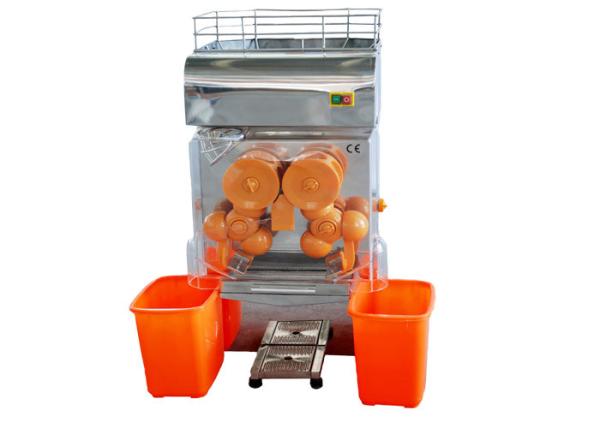

Automatic Electric Commercial Orange Juicer Machine 370W High Power
Konmax Orange Juicer Machine Description:
This juice extractor is specially designed for making fresh orange
juice. The orange juice extractor adopts squeezing way which can realize an automatic process of skinning,
extracting and filtering.The produced juice has no seeds and no residue so that tastes very
good.
1. The orange juice extracting machine has compact structure and
delicate design.
2. Automatic feeding and juicing process, the extracting rate can
be 40%.
3. The orange juice machine is made of stainless steel which is
anti-corrosion and easy to clean and sanitary.
4. The whole juicing process can be finished in a very short time,
the juice is originally nutrient and tasty.
Konmax Orange Juicer Machine Application:
The commercial orange juicer machine apply to small drink shops,
fruit shop, restaurants, hotels, bars, the Office of cards, tea - and coffee-houses, a very wide range of applications.
Konmax Orange Juicer Machine Specification:
Material | Stainless steel | Delivery time | 20FT: 10days; 40HC: 15days |
Width | 440MM | Length | 480MM |
Height | 880MM | Model | XC-2000E-4 |
orange size | 40--90mm | Output | 22-25 oranges/mins |
Package size | 490*450*890MM | Certificate | CE approval available |
Electrics Standard | 110V-220V,50-60HZ | Power | 120W/250W |
G.W | 62KG | N.W | 56KG |
40' HQ loading | 210PCS | FOB Shanghai | USD |
20' FT loading | 88PCS | Warranty | 1 Year |
Konmax Orange Juicer Machine Detailed Photo:
Konmax Orange Juicer Machine Accessory:
Two protruding balls ,blade compages ,concave squeezer ,peelers
,peeler seats ,plastic veils ,pressing screw , two concave balls .
Konmax Orange Juicer Machine Operation Instruction:
1. Place the machine on the stable table, connect power plug to a
grounded connector plug.
2. Safety check before you turn on the machine:
1) If the nut (4 units) screw down properly.
2) If place the knife rest correctly (press it on the bottom).
3) Place the cover on, screw down two side nut (2 units).
3. It can be used after turn on the power.
4. Put antisepsis and washed fresh oranges (40-80mm) in, the
machine will peel the skin, producing fresh juices, filtrate automatically.
Orange juicer machine production procedure :
1) Laser cutting : we use our laser cutting machine to cut the 3mm
thickness stainless steel 304 into different size due to different
model
2)Punching : we use punching machin to make punching on the
stainless steel , the punching position is fixed and measured by
machine .
3)Bending :because the orange juicer machine require different
angles , so we need bend the stainess to meet the demand .
4)Moulding : we use injection moulding machine to make the spare
parts like protruding ball , concave squeezer ,peeler etc .
5)Welding : weld internal parts like motor case etc .
6)Assembling :assemble the parts together .
7)Testing :all machine before exporting we need test 2 days , using
oranges squeezing and see how it is working.
8)Washing :before packing we need washing the machine clearly and
make it clean .
9)Packing :usually we put foam inside the carton and seal the
carton outside , if you need wooden packing we can meet you demand
.
Konmax Orange Juicer Machine E-catalogue:
![]() |
