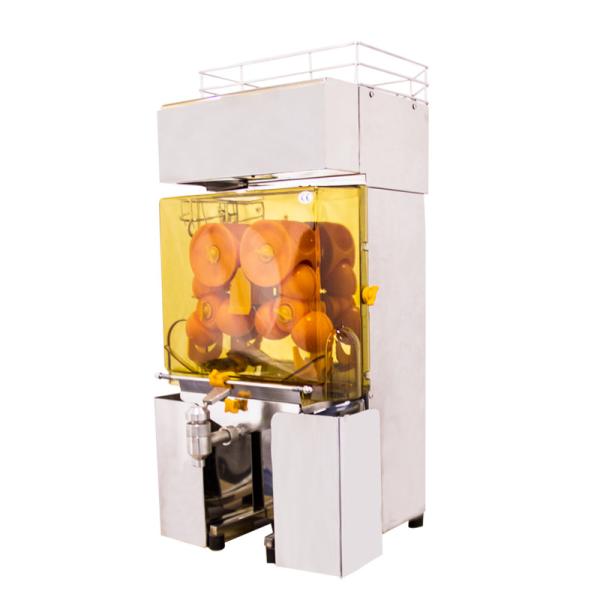

Fresh Squeezed Automatic Orange Juicer Machine / Orange Juice Maker 110v - 220v
Konmax Orange Juicer Machine Specification:
1.Power supply:220--230V 50HZ /110--120V 60HZ
2.Power consumption:120W / 250w
3. Size of orange required:40--90mm
4.Output: 22-25 oranges/per minute
5.Machine Size: 480L*440W*880H mm(length*width*height)
6.Net Weight: 56kg
7．Security: 　Safety cut out switches
The machines will stop operating without the cover place.
8. ConVeyance: Qty/20' FCL: 88sets

Konmax Orange Juicer Machine Detailed Photo:

Stainless steel top fruit basket can hold 10 kg oranges
Counter function : it can calculate oranges squeezed .

Food grade squeezing kits are concave and convex ball

Stainless steel filter to seperate juice and residue .
Konmax Orange Juicer MachineAccessory:
Two protruding balls ,blade compages ,concave squeezer ,peelers ,peeler seats ,plastic veils ,pressing screw , two concave balls .

Konmax Orange Juicer Machine Operation Instruction:

1. Place the machine on the stable table, connect power plug to a grounded connector plug.
2. Safety check before you turn on the machine:
1) If the nut (4 units) screw down properly.
2) If place the knife rest correctly (press it on the bottom).
3) Place the cover on, screw down two side nut (2 units).
3. It can be used after turn on the power.
4．Put antisepsis and washed fresh oranges (40-80mm) in, the machine will peel the skin, producing fresh juices, filtrate automatically

Konmax Orange Juicer Machine Cleaning Instruction:

1.Wrench screws of the front cover and take off the cover .
2.Take off the holder of the peel razor
3.Wrench screws on the ball.Hold the machine with both hands,and use two fingers to take off the plastic balls .Do not use one hand

only because this may cause injury.Since the spinning angels of axles are different.sometimes you need to take off(or put on)the two corresponding top and bottom ball at the same time .
4. take off the center of the valve of the juicer tank.
5. Take off the mesh filter
6. Clean the all parts mentioned in the instruction book .
7. Clean the garbage can in times .

  China Kingmax Industrial co., Ltd(Kingmax is our HK company name , we also have inland company Jiangsu Konmax Import and Export Co.,Ltd , HK company is our head office mainly in charge of selling and Konmax is specially developing,designig, manufacturing etc). is a professional manufacturer, integrating production and sales of freshly squeezed juice machines,slush machine ,cold drink dispenser etc beverage machine  .We have independent intellectual property rights, product quality control(through CE certification and ETL test ) for delivery of guaranteed products around the world.

  Jiangsu Konmax Import and Export Co.,ltd commits in developing ,designing , manufacturing , selling beverage machine including centrifugal juicer machine , juicer dispenser etc With 10 QC ,6 engineer,150 workers ,3 production lines 15,000 square meters production area c .We can provide you with our independently designed and offer OEM and ODM for your specified requirements.
  With many years of production experience, our company absorbs and introduces a variety of advanced technologies and excellent processing and testing equipment, and strictly implements ISO quality certification standards CE certificate and good after-sales service systems. We have won the trust of many customers and our products are exported to Europe market ,Russia, India, Ukraine, Nepal, South Africa, Indonesia and other countries and regions.You are always welcome to visit our website or our factory. We are more than happy to show you our technologies and capacity.

  If you are a new customer, you will enjoy doing the first business with us. If we have made business, you will be our most respective distributors forever.
