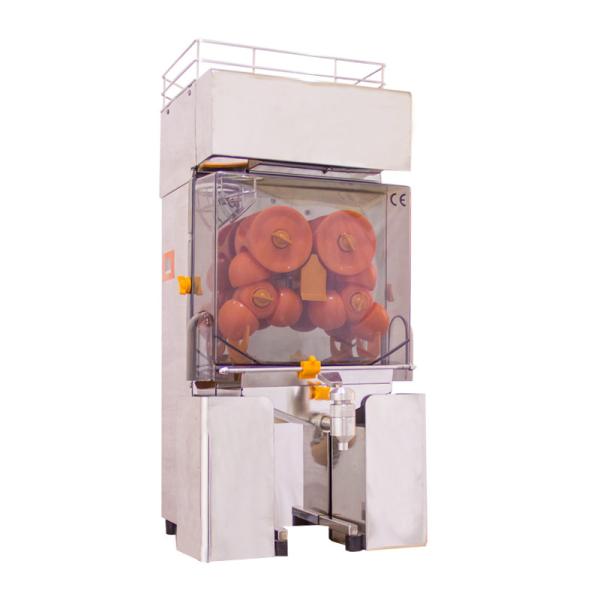

Commercial Orange Juicer Extractor , Light Weight Lemon Squeezer
Description:
The Juicer machine would make extracting juice from oranges. It
design Reasonably, both exterior and interior structure are
advanced. Made of the highest quality of stainless steel, our
juicer is made for the commercial business environment.
Characteristics of the machine are: no antiseptic, coloring matter,
essence & water in the fresh juice. It is totally different with
another juice in the market. Use these kinds of machine you just
need to antisepsis and wash fresh oranges, the machine will peel
the skin, producing fresh juices, filtrate automatically. This
product is well-designed and advanced, all the material are safety
by stainless steel and PC plastic.
The machine apply to small drink shops, fruit shop, restaurants,
hotels, bars, the office of cards, tea and coffee-houses, a very
wide range of applications. Also applies to the success of the
family. With the concept of raising the level of food consumption,
as people of freshly squeezed juice will replace the carbonated
beverage drinks.
Application:
The machine apply to small drink shops, fruit shop, restaurants,
hotels, bars, the Office of cards, tea - and
coffee-houses, a very wide range of applications.
Specification:
| Material | Stainless steel | Delivery time | 20FT: 10days; 40HC: 15days |
| Width | 440MM | Length | 480MM |
| Height | 880MM | Model | XC-2000E-4 |
| orange size | 40--90mm | Output | 22-25 oranges/mins |
| Package size | 490*450*890MM | Certificate | CE approval available |
| Electrics Standard | 110V-220V,50-60HZ | Power | 120W/250W |
| G.W | 62KG | N.W | 56KG |
| 40' HQ loading | 210PCS | FOB Shanghai | USD |
| 20' FT loading | 88PCS | Warranty | 1 Year |
Accessory:
Two protruding balls ,blade compages ,concave squeezer ,peelers
,peeler seats ,plastic veils ,pressing
screw , two concave balls .
Operation Instruction:
1. Place the machine on the stable table, connect power plug to a
grounded connector plug.
2. Safety check before you turn on the machine:
1) If the nut (4 units) screw down properly.
2) If place the knife rest correctly (press it on the bottom).
3) Place the cover on, screw down two side nut (2 units).
3. It can be used after turn on the power.
4．Put antisepsis and washed fresh oranges (40-80mm) in, the machine
will peel the skin, producing fresh juices, filtrate automatically
Cleaning Instruction:
1.Wrench screws of the front cover and take off the cover .
2.Take off the holder of the peel razor
3.Wrench screws on the ball.Hold the machine with both hands,and
use two fingers to take off the plastic
balls .Do not use one hand only because this may cause injury.Since
the spinning angels of axles are
different.sometimes you need to take off(or put on)the two
corresponding top and bottom ball at the same time .
4.take off the center of the valve of the juicer tank.
5.Take off the mesh filter
6.Clean the all parts mentioned in the instruction book .
7.Clean the garbage can in times .
Safety Notice:
Avoid dangerous please followed by the next step:
1. Ensure read and understand all the explanations.
2. Only use the specifically marked AC power source(230V/50HZ,
120V/60HZ).
3. For the safety purpose, only use connect power to the grounded
connector plugs.
4. Ensure machine is disconnected from main power and turn off the
power before you clean it.
5. Do not touch the power connect plug.
6. Only used for citrus and lemon. Do not used for other fruit.
7. Do not use for peach, mango etc, in case it damage.
8. Do not put your hands in the machine while it working.

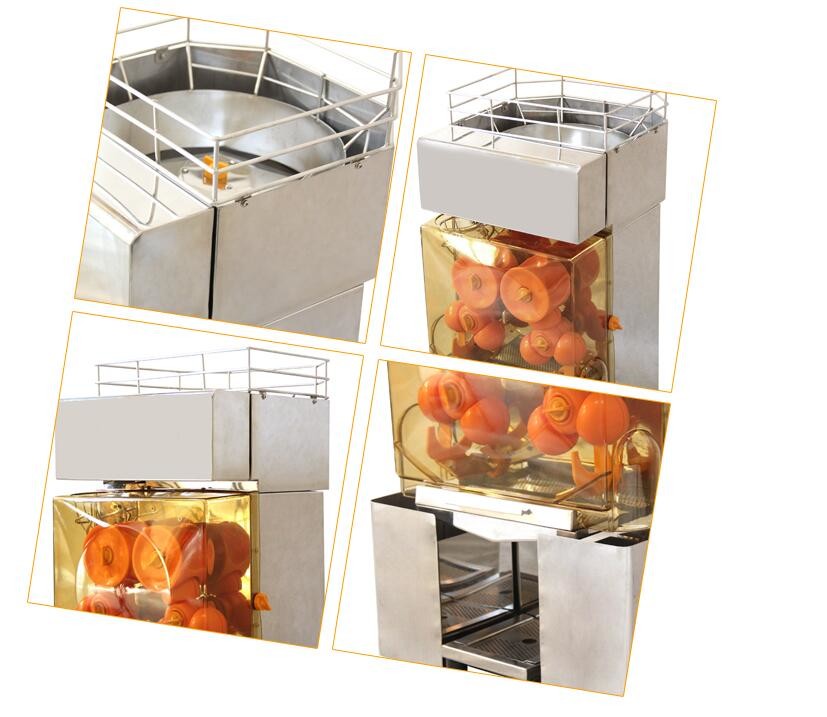

Detailed Photo:
