Heavy Duty Electric Juice Commercial Beverage Dispenser Cold Hot Dispenser For Coffee Bar

Description:
1. fruit juice dispenser all the parts using in cold drink machine are environment friendly
2. fruit juice dispenser CE certification
3. High quality compressor lead to cooling & heating fast and stable ( cooling & heating during 25—45mins)
4. Cold drink machine with stainless iron panel complete mirror design
5. fruit juice dispenser all the part inside cold drink machine welding by copper tube , in order to Avoid rust
6. cold drink machine divided into cool & hot , cooling only , heating only
7. Stirring and Spraying design.

Application:
Bar use ,restaurant,store , supermarket

Specification:

Votage 220-240V/110-115V
Frequency 50/60/HZ
Cold power 330W
Heat power 600W
Cold-beverage temperture 7C-12C
Hot-beverage temprture 52C-58C
Shape size 490×490×730
Carton Packing 520×520×750
Weight 30 kg
Gross weight 32 kg

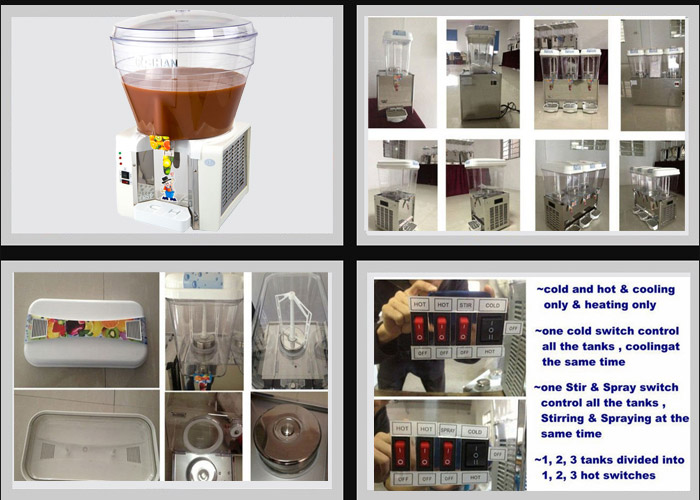

Detailed Photo:



How to use the cold beverage machine
1.To fall prepared beverage into the crock , the height of it is should not exceed the standard height (9L-12L-18L-20L-50L), otherwise the beverage will flow into the churn-dasher from the dasher tube,which will make the dasher burn .
2.The temperature of the beverage should not too high (not exceed 35), otherwise it will make bad effection for the refrigeration .
3.Plug in the supply power to the 3 hole socket , the grounding hold should connect with the protecable wire or fixture to ensure the safety .
4.To turn the switch on the position of refrigeration , press down the refrigeration switch , the compressor fan starts running and refrigeration system starts working .
Then start the dasher to mix or start the spewing swtich to spew.
5.When the beverage becomes to the suitable temperature , please make the cup against the push board lightly .the beverage will flow into the cuo from the outlet mouth .
6.when the temperture reduces to the certain degree , the refrigeration will stop running because of the influence from the temperature cotroller .And when it increases, it will start automatically again .
7.It should re-start after 5 minuters if it turn off suddenly or stop temporarily .otherwise it will damage the compressor .

Packing Photo:

Spare parts:
