Brand Name : | kingmax |
Model Number : | LRSDP-18LX2 |
Certification : | CE |
Price : | Negotiate |
Payment Terms : | TT,L/C, WEST UNION ,PAYPAL |
Supply Ability : | 2000PCS ONE MONTH |
Delivery Time : | 15 days after receiving payment |
Konmax Cold Drink Dispenser Description:
Hotel ,restaurant,store , supermarket,drink bar etc
Konmax Cold Drink Dispenser Specification:
Material | Stainless steel R304 | Machine size | 480*460*740MM |
power | 280/600W | Packing size | 510*470*750MM |
Cold-beverage temperture | 7 to 12 degree | Hot-beverage temperature | 52 to 58 degree |
Tank material | PC | Model | LSJ 18 LX2 |
Condenser | with Copper tube | Certificate | CE |
switch | LCD switch | Packing Way | Carton +foam inside |
Electrics Standard | 110V-220V,50-60HZ | Drive Mode | Magnetic rotating |
G.W | 31KG | N.W | 29KG |
40' HQ loading | 425PCS | FOB Shanghai | USD |
20' FT loading | 165PCS | Warranty | 1 Year |

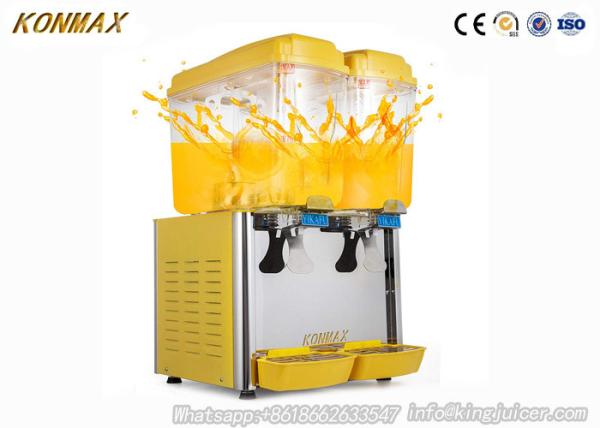

Konmax Cold Drink Dispenser Detailed Photo:
Imported cooper compressor makes quick cold and long life
Function can be mixing , spraying , cold , cold& hot .
Food grade PC material make it healthy to use with CE and ROHS certificate .
How to use the cold beverage machine ?
1.To fall prepared beverage into the crock , the height of it is
should not exceed the standard height (9L-12L-18L-20L-50L),
otherwise the beverage will flow into the churn-dasher from the
dasher tube,which will make the dasher burn .
2.The temperature of the beverage should not too high (not exceed
35), otherwise it will make bad effection for the refrigeration .
3.Plug in the supply power to the 3 hole socket , the grounding
hold should connect with the protecable wire or fixture to ensure
the safety .
4.To turn the switch on the position of refrigeration , press down
the refrigeration switch , the compressor fan starts running and
refrigeration system starts working .
Then start the dasher to mix or start the spewing swtich to spew.
5.When the beverage becomes to the suitable temperature , please
make the cup against the push board lightly .the beverage will flow
into the outlet mouth .
6.when the temperture reduces to the certain degree , the
refrigeration will stop running because of the influence from the
temperature cotroller .And when it increases, it will start
automatically again .
7.It should re-start after 5 minuters if it turn off suddenly or
stop temporarily .otherwise it will damage the compressor .
