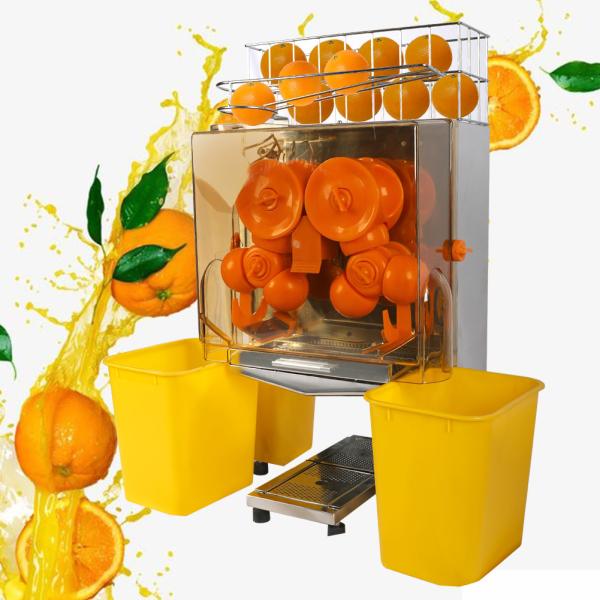

Centrifugal Juicing Machine Zumex Orange Juicer / Orange Juice Squeezer

Konmax Orange Juicer Description:

1.Processed : oranges for juice extraction
2. Description: pure natural green drink production machines, which are squeezed orange juice freshly squeezed orange juice is pure juice,which is a major feature: the juice does not contain any artificial preservatives, stabilizers, pigments, flavors, water, and juice available on the market, jars, bottles, flexible packaging,loading and granular powder flushing juice are essentially different. The orange juicer take extrusion, orange sterilized, rinsed directly into the machine, automatic peeling, juice, filter.
3.now drink freshly squeezed orange juice is no skin, no silk, seedless, no residue, excellent taste.
4.The machine design is reasonable, in terms of appearance and internal structure are advanced, where the originals are in contact with the juice of stainless steel and non-toxic plastic polypropylene and ABS.Food is absolutely safe. The machine is compact and reasonable structure, small size and light weight.

Konmax Orange Juicer Specification:

1.Power supply:220--230V 50HZ /110--120V 60HZ
2.Power consumption:120W
3.Size of orange required:40--80mm
4.Output: 22-25 oranges/per minute
5.Machine Size: 400L*300W*770H mm(length*width*height)
6.Net Weight: 42kg
7. Security:　Safety cut out switches
The machines will stop operating without the cover place.
8. ConVeyance: Qty/20' FCL: 120sets

Konmax Orange Juicer Safety Notice:
Avoid dangerous please followed by the next step:

1. Ensure read and understand all the explanations.
2. Only use the specifically marked AC power source(230V/50HZ,120V/60HZ).
3. For the safety purpose,only use connect power to the grounded connector plugs.
4. Ensure machine is disconnected from main power and turn off the power before you clean it.
5. Do not touch the power connect plug.
6. Only used for citrus and lemon. Do not used for other fruit.
7. Do not use for peach, mango etc, in case it damage.
8. Do not put your hands in the machine while it working.

Konmax Orange Juicer Accessory:
A pair of peeling implement(two),one of 5A fuze,one of cross implement, one of 8-10mm spanner,one of electronic supply.

Konmax Orange Juicer Operation Instruction:
1. Place the machine on the stable table, connect power plug to a grounded connector plug.
2. Safety check before you turn on the machine:
1) If the nut (4 units) screw down properly.
2) If place the knife rest correctly (press it on the bottom).
3) Place the cover on, screw down two side nut (2 units).
3. It can be used after turn on the power.
4. Put antisepsis and washed fresh oranges (40-80mm) in, the machine will peel the skin, producing fresh juices, filtrate automatically

Konmax Orange Juicer Cleaning Instruction:

1. Begin by unplugging the juicer.
2. Disassemble the juicer completely.
3. Dump the bin or container that catches the pulp and scrape it out with a spatula.
4. Rinse each piece under running water.
5. Use the small brushes to clean the small areas, there are small brushes available such as nail brushes

that can be used to clean the nooks and crannies
6.For more thorough cleanings, fill the sink with water and add dish soap.

7. Soak each piece for a few minutes and then wash with a brush or soft cloth
8. Pay special attention to the mesh strainer as this can quickly build up with pulp and juice debris. Do not

allow the juice particles to dry in this fine screen or they will be difficult to remove
9. Use a soft cloth or sponge moistened with water to wipe down the machine itself. Although the juice is

designed to go through a certain route in the juicer, juice and pulp will end up everywhere.
10. Allow all of the pieces to dry completely. It is fine to set them on a towel or drying rack.
11 .Reassemble the juicer.

Konmax Orange Juicer Detailed Photo:

Stainless steel top fruit basket can hold 10 kg oranges

Safety cut out switch makes machine safe to operate

BPA-Free material food grade PC squeezed kits

  China Kingmax Industrial co., Ltd(Kingmax is our HK company name , we also have inland company Jiangsu Konmax Import and Export Co.,Ltd , HK company is our head office mainly in charge of selling and Konmax is specially developing,designig, manufacturing etc). is a professional manufacturer, integrating production and sales of freshly squeezed juice machines,slush machine ,cold drink dispenser etc beverage machine  .We have independent intellectual property rights, product quality control(through CE certification and ETL test ) for delivery of guaranteed products around the world.

  Jiangsu Konmax Import and Export Co.,ltd commits in developing ,designing , manufacturing , selling beverage machine including centrifugal juicer machine , juicer dispenser etc With 10 QC ,6 engineer,150 workers ,3 production lines 15,000 square meters production area c .We can provide you with our independently designed and offer OEM and ODM for your specified requirements.
  With many years of production experience, our company absorbs and introduces a variety of advanced technologies and excellent processing and testing equipment, and strictly implements ISO quality certification standards CE certificate and good after-sales service systems. We have won the trust of many customers and our products are exported to Europe market ,Russia, India, Ukraine, Nepal, South Africa, Indonesia and other countries and regions.You are always welcome to visit our website or our factory. We are more than happy to show you our technologies and capacity.

  If you are a new customer, you will enjoy doing the first business with us. If we have made business, you will be our most respective distributors forever.
